Garden Spotlight Luminaires

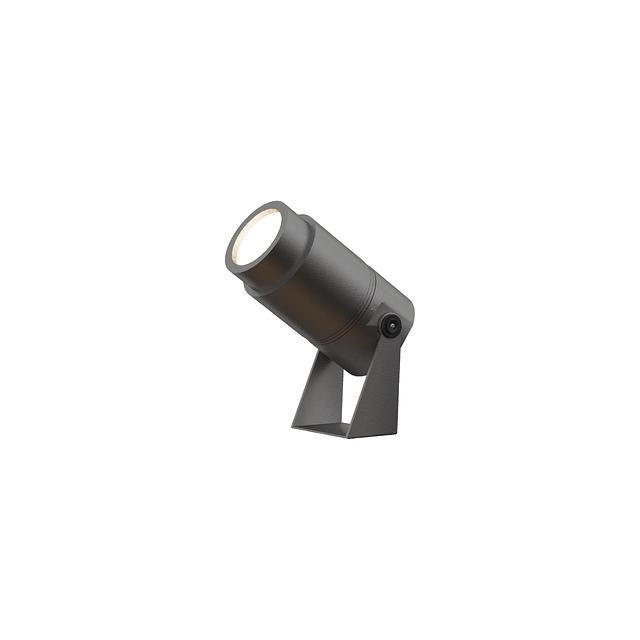

The RAYZ Garden Spotlight by Bullard Outdoor is a sleek and durable LED luminaire designed for outdoor and landscape applications.
Built from 12# die-cast aluminum with a tempered glass lens (T=3mm), it operates on 110–277V and delivers reliable, high-quality illumination with a CRI of 80.
With IP66 and IK06 protection and a nickel-coated copper cable gland, RAYZ offers exceptional performance and longevity.
Available in Sanded Bronze, Dark Gray, Black, and White finishes, it combines modern design with rugged outdoor durability.
Built from 12# die-cast aluminum with a tempered glass lens (T=3mm), it operates on 110–277V and delivers reliable, high-quality illumination with a CRI of 80.
With IP66 and IK06 protection and a nickel-coated copper cable gland, RAYZ offers exceptional performance and longevity.
Available in Sanded Bronze, Dark Gray, Black, and White finishes, it combines modern design with rugged outdoor durability.
Resources
Beam Angle
- 8
- 15
- 20
- 24
- 25
- 30
- 33
- 38
- 45
- 50
- 60
CCT
- 3000K
CRI
- 80
Color / Finish
- Black
- Bronze
- Dark Grey
- White
Diameter
- 1.5
- 2
- 3
Dimensions
- L: 3.55 In. H: 2.9 In.
- L: 4.13 In. H: 3.9 In.
- L: 5.1 In. H: 4.8 In.
Dimming Protocol
- 1-10 V
- DALI
- PWM
Lamp Source
- LED
Listings
- ETL
Lumens
- 258
- 968
- 1689
Materials
- Die-Cast Aluminum
- Stainless Steel
- Tempered Glass
Mounting
- ABS ground stake
- Pole
Ratings & Compliance
- IK06
- IP66
Shape
- Circular
- Cylinder
- Round
Voltage
- 110-277 V
Watts
- 3
- 8
- 14
